The Modular 1,000kN System

HDS Heavy-Duty Shoring

The Modular 1,000kN System

HDS Shoring is our latest modular system specially designed for pre-cast segmental bridges. It facilitates total cost reductions for heavy duty applications and provides a simple easy use that suit to the required tower height through its Screw Jack and endplate adjustment.




  • High load-bearing capacity

    1,000 kN per leg with a safety factor of 2

  • Simple Connections

    Efficient assembly with only 2 standard connections

  • Highly versatile

    Flexible configuration of horizontals and verticals to facilitate all dimensions

  • Compatible

    Can work with other PERI systems for access and safety requirement

Applications

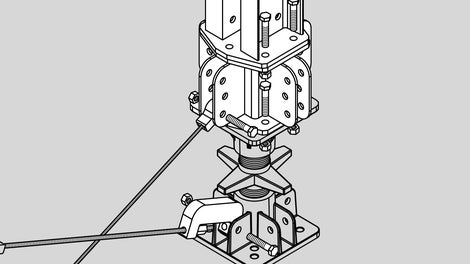

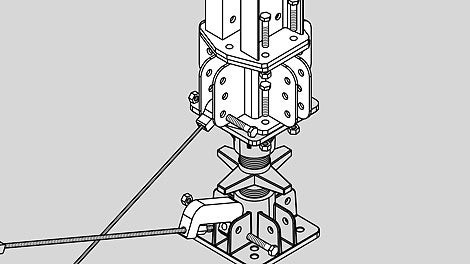

  • Efficient assembly with only 2 standard connections
    Efficient HDS Connections

    Efficient assembly with only 2 standard connections

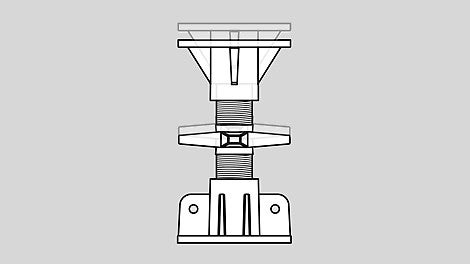

  • Extension between 410 - 620mm is realized to simplifies striking process
    Adjustable Jack with 1,000kN capacity

    Extension between 410 - 620mm is possible to simplify the striking process

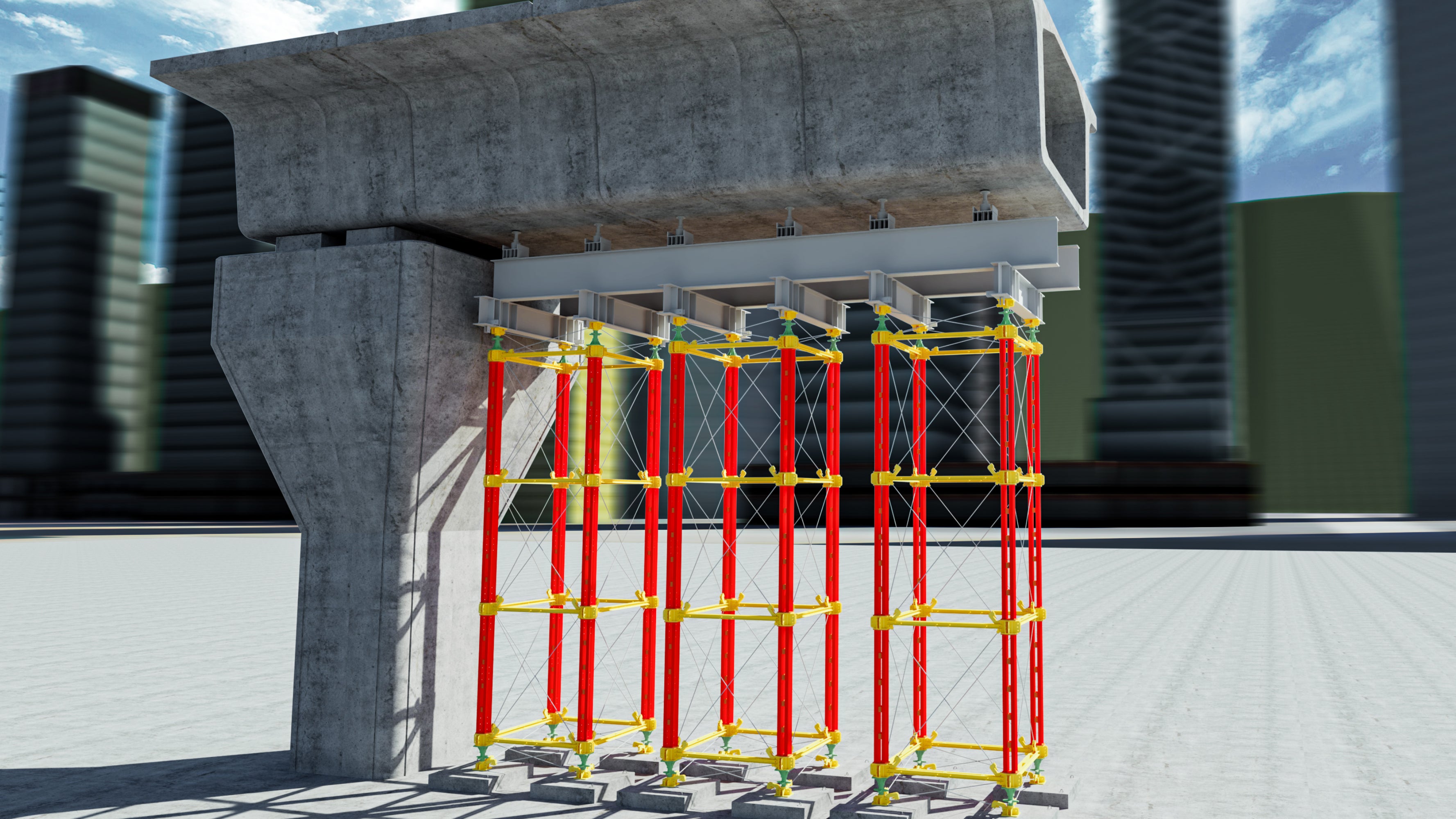

  • Highly suitable for the construction of pre-cast segmental bridges with high efficiency
    Pre-cast bridge construction

    A very efficient option for the construction of pre-cast segmental bridges

  • Watch the video to find out more

Product Data Sheet

Technical specifications
Supplementary holes
on HDS Standards for accessories
Additional restraint
on HDS Standards for high-load bearing capacity
Compatibility
HDS Screw Jack is compatible as both top and bottom connection with extension between 410 - 620 mm
Dimensions
Ground plan is available in dimension of 1.5m up to 4.5m in 50cm increments

Technical specifications
Supplementary holes
on HDS Standards for accessories
Additional restraint
on HDS Standards for high-load bearing capacity
Compatibility
HDS Screw Jack is compatible as both top and bottom connection with extension between 410 - 620 mm
Dimensions
Ground plan is available in dimension of 1.5m up to 4.5m in 50cm increments
